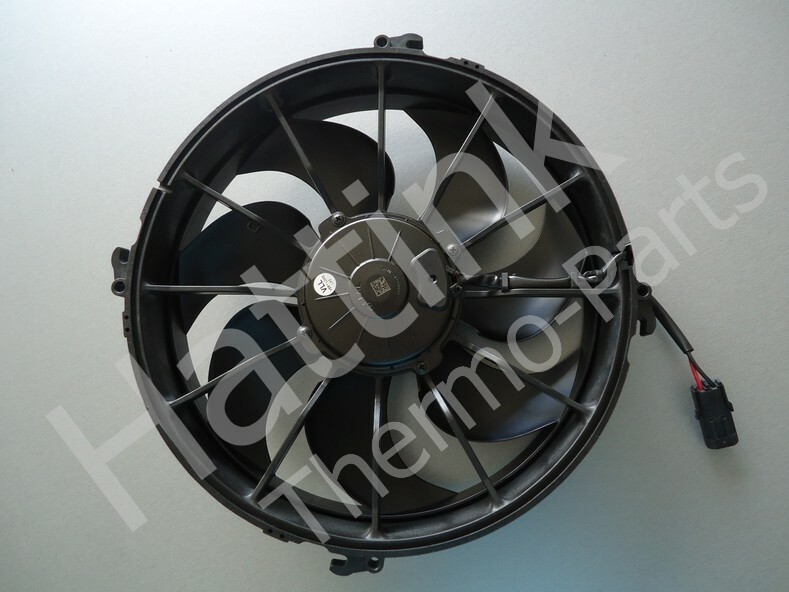

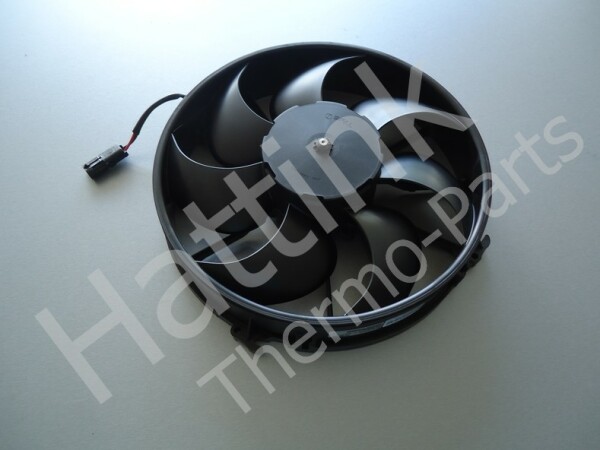

Axiale Elektrolüfter Ø 305 mm Suction 24V VA51-BP70/VLL-69A
Probespannung 26V
Stromverbrauch (A) (A) 7,9 A
Gebläseleistung (m3/h) 2770 m³/h
Volt 24V
Type Fan Suction
Dicke 93 mm
Durchmesser Lüfterflügel Ø 305 mm
Gesamtdurchmesser Ø 316 mm

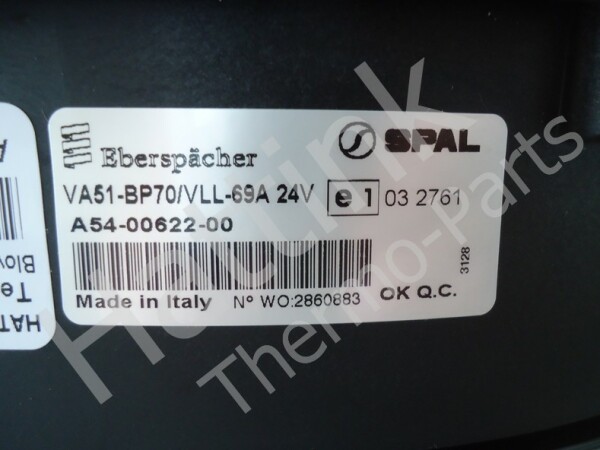

Spal Code VA51-BP70/VLL-69A
Carrier Transicold code: 54-00622-00 / 540062200
Produkt code
Fan/Blower
Spal Fan Ø 305 mm Suction 24V VA51-BP70/VLL-69A
Proof tension 26V
Electric consumption (A) 7,9 A
Air flow (m3/h) 2770 m³/h
Volt 24V
Type Fan Suction
Thickness 93 mm
Blades diameter Ø 305 mm
Total Diameter Ø 316 mm
Spal Code VA51-BP70/VLL-69A
Carrier Transicold code: 54-00622-00 / 540062200
Produkt code
Fan/Blower
Technical specifications:
AC-3010.2633B.pdf
Spal type comparison:
Spal Type VA51.pdf
Examples and applications or
Names and codes:
AC-3010.2633B/AC-30102633B
AC301026.33B/AC30102633B
AC 301026.33B/AC 30102633B
VA51BP70/VLL69A/VA51BP70/VLL69A
VA51BP70/VLL69A/VA51BP70VLL69A
VA51BP70/VLL-69A/VA51-BP70/VL69A
VA51-BP70VLL-69A
30315249SU/AC-30315249SU
