Aircopump/Pumpairco
ACpump/Aircocompressor
Description: TM15 HD Rotolock Horizontal
12V Ø119mm Poly-V 8
Displacement:146,7 cc
Refrigerant: R134a
Oil Type: (HS) ZXL 100PG AC-80813042
Oil Quantity 150 cc

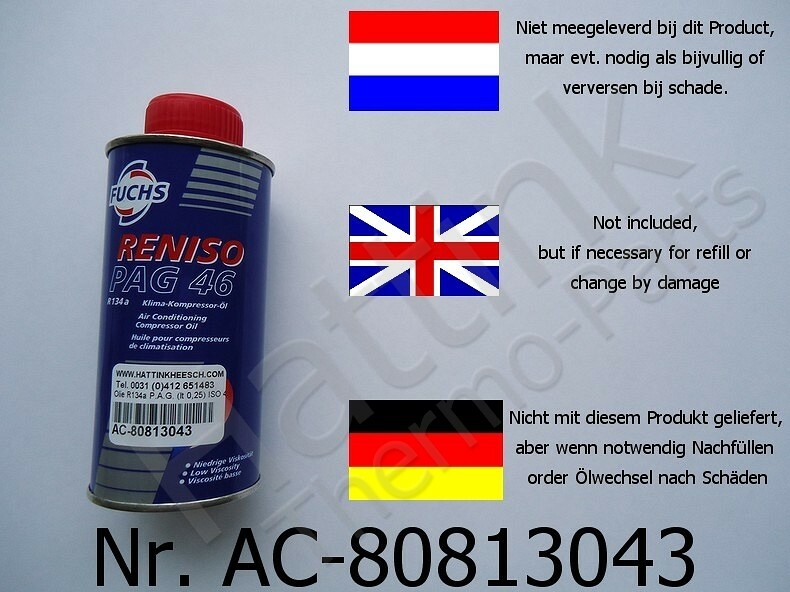

Autoclima Oil code: AC-808'13043
Suction fitting: 1" 14UNS
Discharge fitting: 1" 14UNS
Pulley Diameter: Ø 119 mm
Voltage: 12V
Number of grooves: 8 Poly-V
Section Groove: 3,56 mm
Compressor Type: Seltec TM15

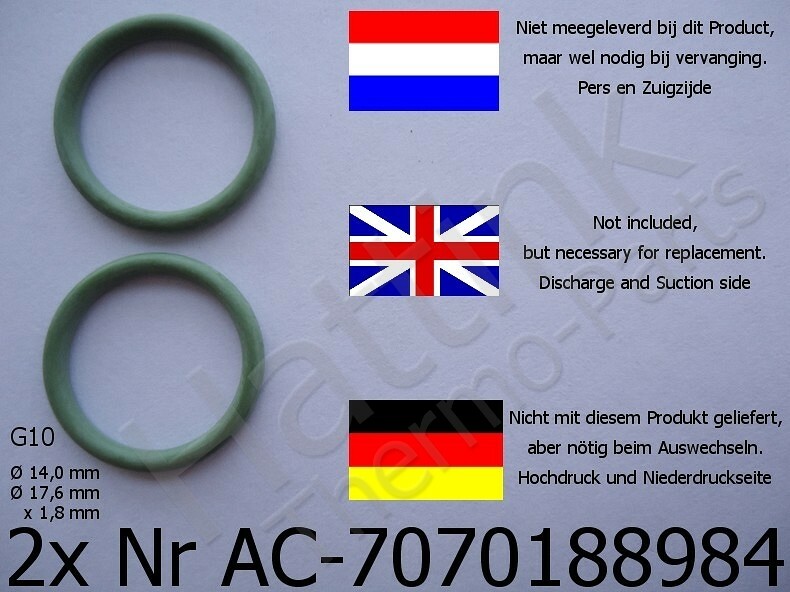

Fittings: Rotolock O-ring

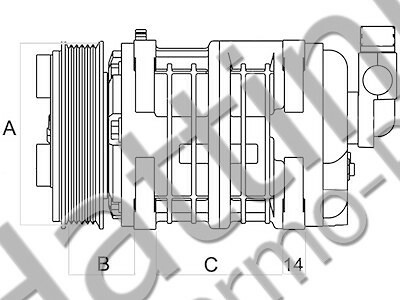

B (mm)
46,5 mm
C (mm)
83,3 mm
Mod. builder
435-55126
OE nr. 3CMP366/435-55126
488-45126/ 2521173/QP15-1173
AC-40430010/40430010
Alte Artikel code:
AC-TM15HS-RL-12V
Beschreibung auf Artikel:
Valeo / N204820Q / SAE-J639 / 2R
HFC-134a / MODEL: TM-15HS / Leak. Test
BODY No. Z0006337C (ZOO6347A) / LUB. ZXL100PG 150 cm³
Hi/Lo:2.9/1.5 MPaG/ GO21cO718
Made in Japan
Netto 7600 gram
Anwendungen und Beispiele oder
Namen und Produktcodes:
